Building the ultimate paint correction lighting setup

We’re going to break this down into 4 components that you’ll need to source: a stand, light cans, light bulbs, and wiring to tie it all together.

Stand

This heavy duty stand is perfect for your lighting setup for a couple of reasons. It can extend up to 9′ high which helps when working on hoods, roofs, and trunk lids.

You can mount up to 8 lights on it and it’ll handle a decent amount of weight.

It also has a pretty wide footprint which makes it sturdy – the last thing you want to worry about is your light stand falling onto the car you’re trying to polish.

I get it, a stand is a stand and it isn’t going to make any difference in the results of your paint correction. But this is where the secret sauce begins:

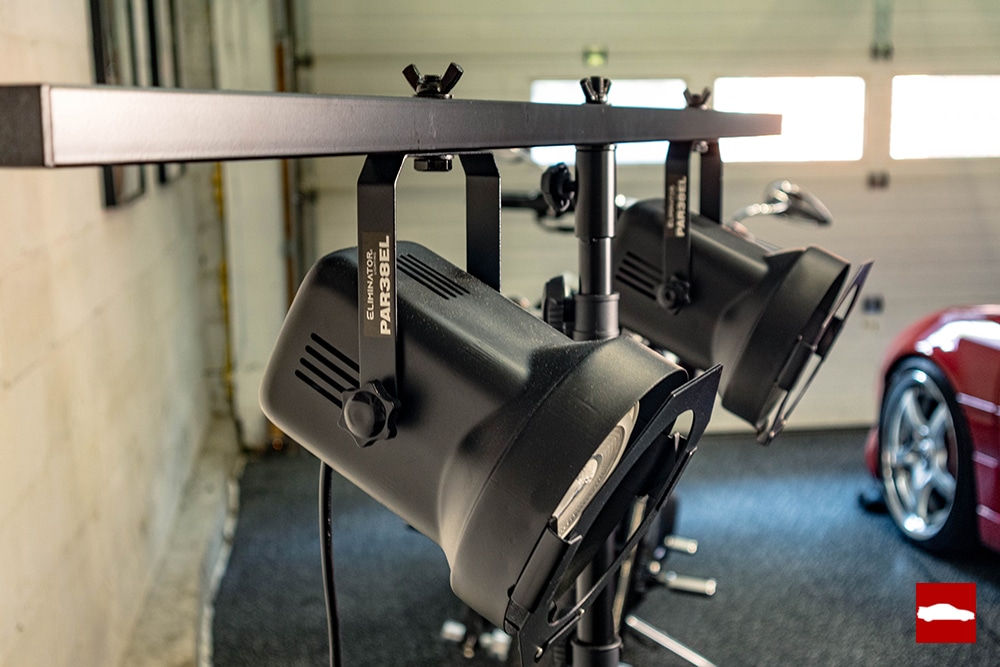

Par 38 Cans

Using par 38 light cans is what makes this totally different from any store bought setup. These have a bracket that easily mounts to the stand listed above with no other hardware required.

The reason why we use these ones from Eliminator is because we can replace the halogen bulbs that are included with high powered LEDs.

You’ll need to buy at least 2 of these for your setup – if you can afford it, 4 is even better!

Bulbs

The halogen bulbs that come with the cans above are no good. They’re weak, cheap, and create a ton of heat (which let’s be honest, you do NOT need any more of during a paint correction in a sweaty garage).

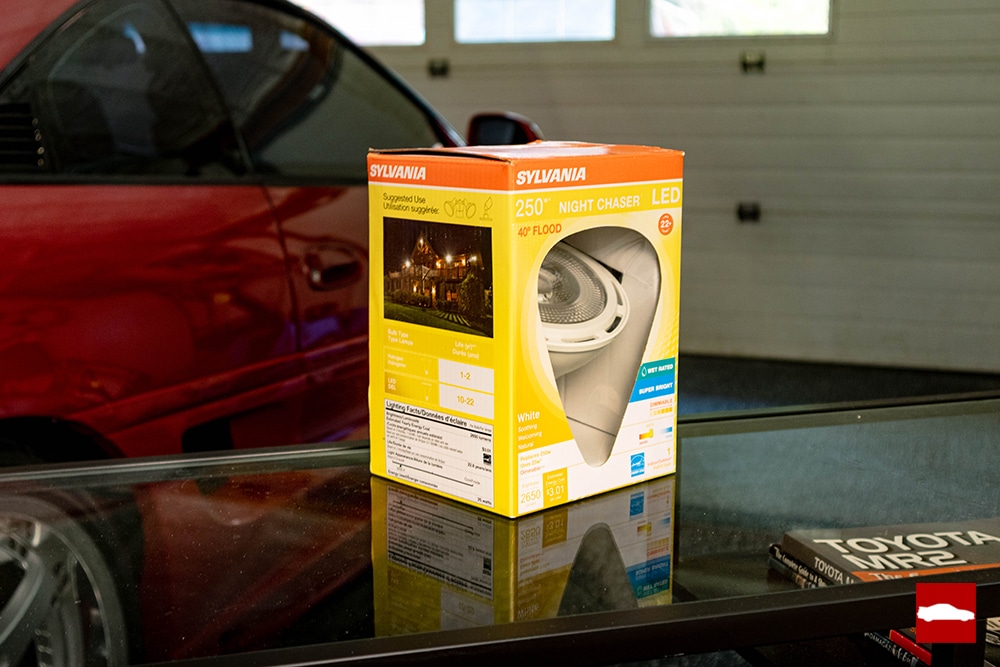

So we swap them out with these LED bulbs from Sylvania. This makes a massive difference.

They’re cooler, way more powerful, and just the right pattern for swirl mark hunting.

Get them in the 3000k “Bright White” color and it’ll match the sun the best. If you’re going to use 4 lights, you might want to consider getting 2 in this color and 2 in a cooler temp like 5000k so that you’re covered no matter what color of car you’re working on.

Wiring

Finally, we need to tie everything together. I used this splitter to connect the 2 lights together into 1 plug but obviously, you’ll need something to accomodate 4 lights if you choose to go that route. I believe they make the same one with 4 plugs on it as well.

The 3 keys to proper paint correction lighting

You’ve done everything right. You dialed in the perfect pad and polish combo and spent hours perfecting your paint. But after pulling your car out into the sun, you notice them – the swirl marks are still there.

Sound familiar?

It’s not your technique. It’s your lighting.

Most DIY detailers (and even some pros) underestimate how important proper lighting is for paint correction. If you can’t see the defects clearly, you’re just guessing.

To be able to spot all of the scratches in your paint, you need three things:

1. The right type of light
2. The right color temperature
3. The right angle of view

Each of these are mandatory and if you miss one, you’ll never see all of the scratches in your paint.

1. Type of Light

The sun is essentially a high-powered circular spotlight. If you want to replicate that indoors, low-powered flood lights or soft lighting simply won’t cut it.

What you want is a high-intensity, focused LED spotlight. These will replicate the harsh directness of sunlight and reveal swirls, scratches, and holograms clearly.

It’s important to note that when I’m talking about spotting swirl marks and scratches, I’m referring to using these for the compounding or cutting stage of a paint correction. Once the scratches are gone and I’m focusing on refining the paint to get the most clarity, I’ll often switch to a lower powered, more diffused light like these:

2. Light Temperature (Color)

Color temperature is measured in Kelvin (K), and it affects how light interacts with your paint.

Here’s the catch: different paint colors reveal scratches better under different temperatures.

• Cool white (5000K+): Helps highlight defects on darker paint.
• Warm white (3000K): Often better for light-colored vehicles.

A lot of this comes down to personal preference. I tend to stick with warm light for pretty much any color but other people might really find it beneficial to try other temps.

Ideally, your lighting setup should include a mix of warm and cool temperatures, or an adjustable light that can toggle between the two.

3. Light Angle

This is where most people go wrong. Even with the right type and temperature, your viewing angle needs to be correct in order to see everything.

To properly expose scratches, inspect your paint at roughly a 45-degree angle from your light source.

Looking straight at your work with a headlamp or ceiling light won’t show everything. In fact, this is why I never use a headlamp for paint correction. It forces you to view the surface directly, which can hide a lot of defects.

You can experiment with this yourself. Try using your inspection light of choice and hold it directly in front of you. Now move it to 45 degrees either to the side or above your eyes, and you’ll notice a lot more scratches.

Common lighting mistakes to avoid

I see a lot of lighting mistakes among hobby detailers and professionals too. Here are some things to avoid:

Your phone flashlight

This is nowhere near powerful or large enough to accurately inspect your paint. You also can’t hold it while you work which forces you to work blind.

A big problem with working blind and inspecting after each pass is that you can’t stop as soon as the scratches are gone. You have to wait until you’re done your complete pass and inspect after.

Well, you only have so much paint on your car – and no matter how good you are, paint correction removes some of it. So continuing to work a section after the scratches are removed is just making your paint thinner than it needs to be… which in turn, leaves less protection against UV.

Garage lighting

Unless you have Par 38 bulbs in your ceiling (and some people do), your garage lighting is not optimized for paint correction.

Even if you did have proper lights in your ceiling, they aren’t located at the proper angle to be able to polish the sides of the car.

So your results on your roof and hood might be great, but if you take the car out at sunset, your fenders and doors might not look anywhere near as good.

Soft or diffused lighting

Soft, fluorescent shop lighting can make your car look great. But that’s not the point here – we want to view our paint in the worst, most aggressive lighting in order to remove the scratches.

Square, rectangle, or tube shaped lighting

Remember, we’re trying to duplicate the sunshine on our paint. The sun is round, so our inspection lighting should be too.

Tubular work lights are great for mechanical work or even lighting for other detailing tasks.

The only time this shape of light comes in handy for paint correction is to identify texture or orange peel in the paint. Then they’re super helpful!

So unless you’re sanding to flatten the painted surface, stick with round lights.

Hexagon ceiling lights

Technically, these are made up of tubular lights which I covered above.

But I hate these so much, I decided to list them separately.

These do absolutely NOTHING to identify scratches and swirls in your paint.

For some reason, tint shops, wrap shops, and inexperienced detail shops love to use these because they look cool.

I guess they’re good at getting peoples’ attention for marketing and growing your social media accounts, but they will actually distract your eyes from seeing the scratches in your paint.

Don’t waste your money on these things – the trend will be over soon.

Budget friendly lighting

Building this lighting setup will add up to at least a couple hundred bucks. I get it, that’s a lot of money if you aren’t going to use it often (or professionally).

So if you want to save money, here’s what I would do:

The cheapest option:

Use whatever lights you’ve got, but make sure to have them at the proper angle and have the rest of the lights in the garage turned off. It won’t be great but that will make the most of what you have to work with.

The medium option:

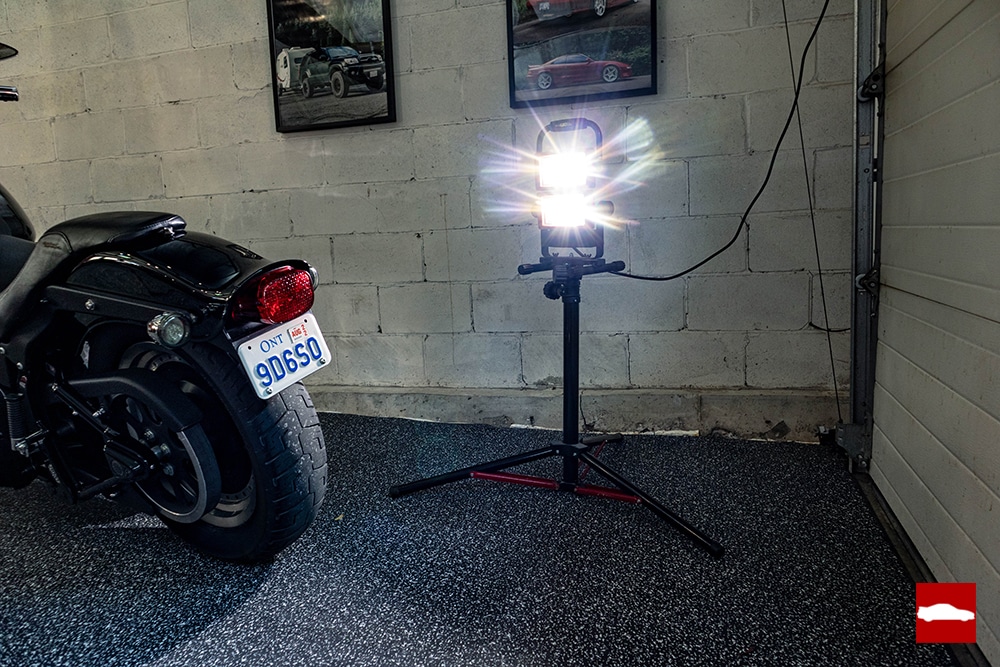

Use some LED work lights for when you’re actually polishing, then inspect your work with a quality handheld light like the ScanGrip Sunmatch.

I know it can be hard to justify spending hundreds on lights rather than something fun like a polisher. But remember, you would be spending $1k+ to have a pro do this so you’re already saving a ton of money by doing it yourself.

And if you’re like most people, your time is valuable. So making sure you get it right the first time rather than having to go back and redo the entire car is certainly worth something.

Think of proper lighting as insurance for your results.

Why proper lighting matters

Check out the results of a recent paint correction I did on a 30 year old Camaro:

This is what the car looked like the very first time I pulled it out into the direct sunlight. Using this lighting allowed me to see all of the scratches and swirl marks so I could remove them effectively.

Paint correction is one of the best ways to make any car look amazing. But people tend to get caught up in the latest products and tools when it’s not really necessary.

Polishers don’t matter. Pads don’t matter. Compounds don’t matter. Paint correction is all about lighting and skill.
